EMS (Nagese Group)EMS has been offering a variety of conductive and dielectric inks for printed electronics for more than 20 years. EMS believes that all applications are unique and specific, so EMS’s ability to define, plan and create solutions for customers is superior to competitors.EMS CI-1001

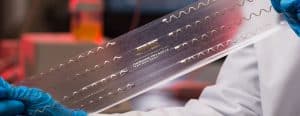

Screen printing inks with silver particles for printing conductive tracks.
Filler – Ag
Viscosity – 17,000 cps
Curing to conductivity – 10 min at 110 ° C
Layer thickness – 7-15 μm
Electrical resistance – 0.015 Ω
Screen printing inks with silver particles when durability is required for flexible and resilient surfaces.
Filler – Ag
Viscosity – 10,000 cps
Curing to conductivity – 10 min at 120 ° C
Layer thickness – 7-15 μm
Electrical resistance – 0.010 Ω
Screen printing dielectric inks for coating conductive inks are mixed with silver inks or for resistor printing. Carbon-based screen printing inks, usually printed on conductive inks such as CI-1001, at contact locations to ensure physical and environmental protection.
Aggregate – carbon
Viscosity – 25,000 cps
Curing to conductivity – 10 min at 120 ° C
Layer thickness – 10-20 μm
Electrical resistance – 50 Ω
EMS 生產了許多產品，但使它們在客戶服務方面表現出色的主要概念之一是能夠根據客戶的需求創建指定的材料。他們擁有實驗室設施，可以混合不同的材料來定制配方產品。 EMS 在開發國際范圍內的解決方案方面非常具有創造性。憑借研發和對其配方產品的深入了解，EMS 成為粘合劑、密封劑和灌封解決方案的全球領導者。有關 更多信息或了解 Engineered Material Systems 如何定義、開發和創建適合您公司的工程材料解決方案，請訪問 www.schzls.com。或致電13922125860（微信同步）我司提供專業的商務合作和技術對接！
