銀-氯化銀 (Ag-AgCl) 油墨
silver-silver chloride (Ag-AgCl) inks
Creative Materials’ standard and custom formulations of silver-silver chloride (Ag-AgCl) inks include various ratios of silver and silver chloride. We are able to meet specific customers’ needs for sensitivity and conductivity for producing medical sensors used in biomedical monitoring, diagnostic applications and iontopheretic drug delivery. Creative Materials offers silver-silver chloride inks that are resistant to aggressive chemistries, including methyl ethyl ketone (MEK), demonstrate a resistance to creasing and scratching, and are compatible with high salt content hydrogels.
Applications for our Ag-AgCl electrically conductive inks include ECG, EEG and TENS electrodes; defibrillator pads; transdermal drug delivery; biomedical sensors and reference electrodes. Our silver-silver chloride electrically conductive inks are suitable for application by screen printing, pad printing, syringe dispensing, dipping and spraying as well as by flexographic and rotogravure printing methods and can be applied to a variety of substrates such as polyimide, PEEK, PET, polycarbonate and glass.
Product | Ag/AgCl Ratio | Description | Conductivity (ohms/sq/mil) | Application Method |
|---|---|---|---|---|
| 125-20 | 95/5 | Chemically resistant electrode ink | 0.02 | Screen-print |
| 126-49(SP)A/B | 82/18 | Elastomeric electrode ink for reference electrodes | 0.1 | Screen-print |
| 117-43 | 85/15 | Water-borne electrode ink | 0.08 | Screen-print |
| 117-43(EU) | 85/15 | Water-borne electrode ink, NMP free | 0.08 | Screen-print |
| 113-09 | 82/18 | Standard electrode ink for defibrillation and reference electrodes | 0.05 | Screen-print |
| 113-09(LPS) | 82/18 | More flexible, solvent resistant version of 113-09 | 0.05 | Screen-print |
| 113-09(S) | 82/18 | Increased solvent resistant version of 113-09 | 0.05 | Screen-print |
| 113-09H | 82/18 | Hydrophilic version of 113-09 | 0.05 | Screen-print |
| 117-23 | 70/30 | Standard electrode ink for defibrillation electrodes | 0.05 | Screen-print |
| 117-23(S) | 70/30 | Increased solvent resistant version of 117-23 | 0.05 | Screen-print |
| 124-36 | 66/34 | Standard electrode ink | 0.05 | Screen-print |
| 125-21 | 65/35 | Chemically resistant electrode ink | 0.02 | Screen-print |
| 106-12 | Silver/Carbon/Silver Chloride | Standard electrode material for ECG | 25 | Screen-print |
| 119-10 | 95/5 | Electrode ink | 0.05 | Pad-print |
| 128-06(PP) | 82/18 | Electrode ink | 0.05 | Pad-print |
| 127-11 | 95/5 | Electrode ink for ECG electrodes | 0.05 | Flexographic/Rotogravure |
| 115-02 | 80/20 | Electrode ink for ECG electrodes | 0.10 | Flexographic/Rotogravure |

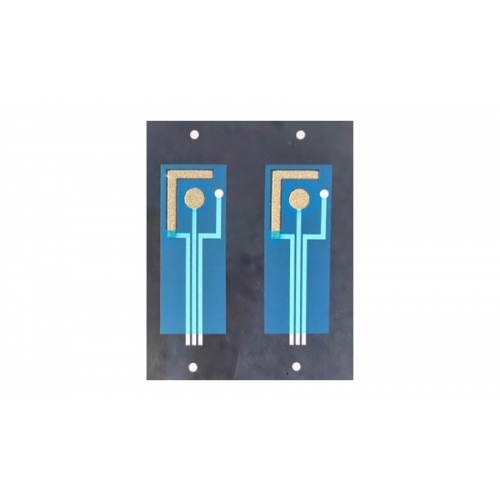

Working or reference electrodes
Defibrillator pads
Transdermal drug delivery
ECG & EKG electrodes
Tens electrodes
Muscle stimulator electrodes
Biosensors
Reference electrodes
